CAD

Source: SPROUT_Design/CAD

Mechanical design files for SPROUT, authored in SolidWorks with STEP exports for interchange with other CAD tools. Individual part files are binary and are not rendered inline — follow the links on the pages below to view file details on GitHub or clone the repository to open them locally.

Folder Description
Compute Box Full compute box design: enclosure mounts, electropneumatic hardware, power electronics, connectors, and robot-base interface
Base CAD Robot base design: the motorized reel mechanism that houses, drives, and everts the vine body

CAD Overview

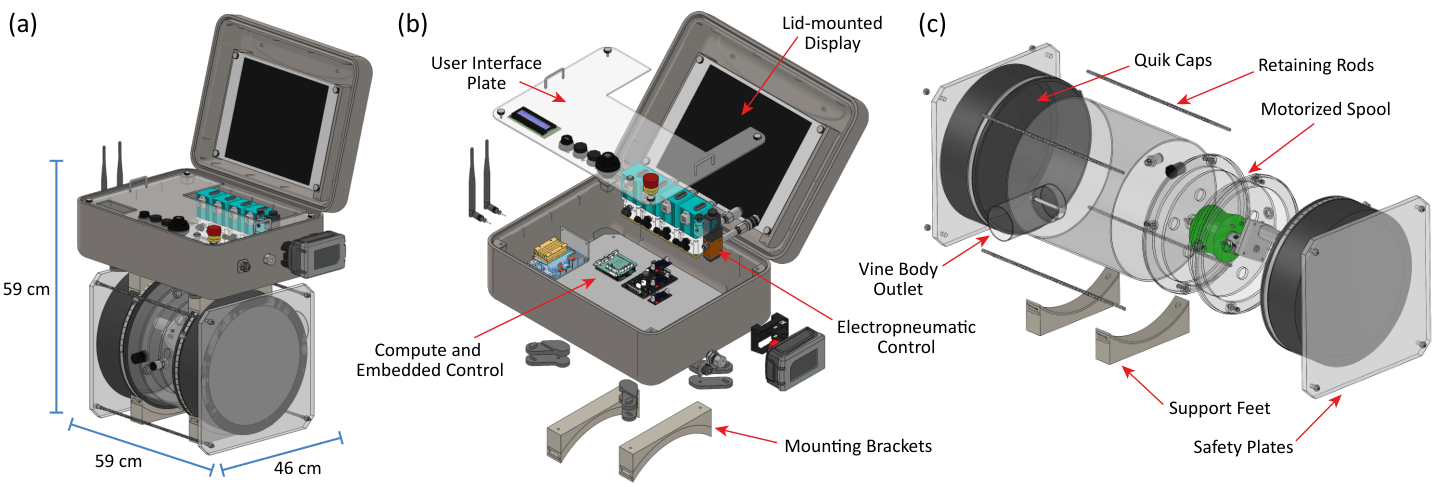

(a) Assembled SPROUT platform and overall dimensions. (b) Exploded view of the compute box. (c) Exploded view of the vine base.

3D preview

The full SPROUT assembly (compute box + robot base) can be previewed directly in the browser.

Working with these files

  • SolidWorks (.SLDPRT, .SLDASM, .SLDDRW) — open directly in SolidWorks. Top-level assemblies are the .SLDASM files.
  • STEP (.STEP/.step) — neutral format importable into any major CAD package (SolidWorks, Fusion 360, OnShape, FreeCAD, etc.).
  • Clone the repository to get all files at once:
git clone https://github.com/SPROUT-MITLL/sprout.git
